driver class to work with the STM32 bxCAN controller module More...

#include <CanDrv_bxCAN.h>

Inheritance diagram for CanDrv_bxCAN:

Collaboration diagram for CanDrv_bxCAN:

[legend]

Public Member Functions
	CanDrv_bxCAN ()
	standard constructor for a bxCAN controller object

virtual	~CanDrv_bxCAN ()
	standard destructor for a bxCAN controller object

void	TxTask (void)
	task function to push the tx message from software buffer to tx mailbox More...

Std_ReturnType	Init (const CanConfigType ptr2Config=NULL_PTR, const ComIf ptr2ComIfObject=NULL_PTR)
	Init function for the bxCAN. More...

Std_ReturnType	SetControllerMode (ECU_CanController Controller, CanControllerStates Transition)
	The API to set a controller mode. More...

Std_ReturnType	Write (ECU_CanController Controller, const ComStack_CanMessageType *ptr2PduInfo)
	The API to write a message to tx FIFO. More...

Std_ReturnType	SetFilterByBitmask (ECU_CanController Controller, ComStack_CanIdType FilterId, ComStack_CanIdType FilterMask)
	configure a free hardware filter using bit masking More...

Std_ReturnType	SetFilterByCanId (ECU_CanController Controller, ComStack_CanIdType FilterId)
	configure a free hardware filter using single CAN Id filtering More...

Public Member Functions inherited from Can
	Can ()
	Standard Constructor.

virtual	~Can ()
	basic destructor

CanDrvStates	GetDrvState (void)
	To get the the software module state.

void	SetDrvStateReady (void)
	Switch driver state to ready.

void	SetDrvStateUninit (void)
	Switch driver state to uninit.

virtual void	Deinit (void)
	The API function for Deinit. More...

virtual Std_ReturnType	SetBaudrate (ECU_CanController Controller, CanControllerBaudRateConfigID BaudrateId)
	The API to set baudrate on a controller. More...

virtual void	DisableControllerInterrupts (ECU_CanController Controller)
	The API to disable all interrupts of a controller. More...

virtual void	EnableControllerInterrupts (ECU_CanController Controller)
	The API to enable all interrupts of a controller. More...

virtual Std_ReturnType	CheckWakeup (ECU_CanController Controller)
	The API checks the controller for wakeup events. More...

virtual Std_ReturnType	GetControllerErrorState (ECU_CanController Controller, uint8_t *ErrorStatePtr)
	The API returns the error state of the CAN controller. More...

virtual Std_ReturnType	GetControllerMode (ECU_CanController Controller, CanControllerStates *ControllerModePtr)
	The API returns the error state of the CAN controller. More...

Private Member Functions
Std_ReturnType	FindFreeFilter (const uint8_t ptr2FilterBankNumber, const uint8_t ptr2FilterNumber, const uint8_t *ptr2FilterMode)
	to find a free CAN hardware filter More...

uint32_t	CanIdToStmRegisterFormat (ComStack_CanIdType CanId)
	change the 32bit format to use with STM Registers More...

Private Attributes
CAN_HandleTypeDef	bxCanHdl [2]
	we need a handle to hold the information for the bxCAN controller

bxCan_TxMessageType	canTxBuffer [CAN_TX_SW_BUFFER_SIZE]
	we want a Tx software buffer More...

Detailed Description

driver class to work with the STM32 bxCAN controller module

Definition at line 183 of file CanDrv_bxCAN.h.

Member Function Documentation

◆ CanIdToStmRegisterFormat()

uint32_t CanDrv_bxCAN::CanIdToStmRegisterFormat ( ComStack_CanIdType CanId )

private

change the 32bit format to use with STM Registers

Parameters

[in] CanId should be a CanIf formated CanId

Returns: CanId in STM bxCAN Register format

Definition at line 432 of file CanDrv_bxCAN.cpp.

References bxCan_IdSelectType::common, bxCan_StdCanIdType::Id11bit, bxCan_ExtCanIdType::Id29bit, bxCan_ExtCanIdType::IDE, bxCan_StdCanIdType::RTR, bxCan_ExtCanIdType::RTR, bxCan_IdSelectType::stm_ExtId, bxCan_IdSelectType::stm_StdId, and TRUE.

Referenced by SetFilterByBitmask(), and SetFilterByCanId().

◆ FindFreeFilter()

Std_ReturnType CanDrv_bxCAN::FindFreeFilter	(	const uint8_t *	ptr2FilterBankNumber,
		const uint8_t *	ptr2FilterNumber,
		const uint8_t *	ptr2FilterMode
	)

private

to find a free CAN hardware filter

STM hasn't a function like this in the HAL.
We find a free hardware filter and returns the filter bank to use the filter.
We returns the filter number to use it on fast selection in IRQ routine.
The filter mode is used to search for mask or identifier filter. If searching for identifier filter we returns also if there is a FR2 is empty

Parameters

[out]	ptr2FilterBankNumber	returns the number of the first free filter bank
[out]	ptr2FilterNumber	returns the filter number according to the previous filter configuration
[in,out]	ptr2FilterMode	selects the search for Mask filter (aka deactivated filter) or Identifier Filter. on Identifier Filter search it returns if the FR1 register is already in use

Returns

E_OK ........... we found an unused filter
E_NOT_OK ........... we can't find an unused filter

Todo:: we need to clean up the filter number CAN1_USED_RX_HW_FILTER

Todo:: we need a readable implementation for the "second identifier filter bit" inside ptr2FilterMode

Definition at line 281 of file CanDrv_bxCAN.cpp.

References AUTOMATIC, bxCanHdl, E_NOT_OK, E_OK, FALSE, P2VAR, and TRUE.

Referenced by SetFilterByBitmask(), and SetFilterByCanId().

◆ Init()

Std_ReturnType CanDrv_bxCAN::Init	(	const CanConfigType *	ptr2Config = `NULL_PTR`,
		const ComIf *	ptr2ComIfObject = `NULL_PTR`
	)

virtual

Init function for the bxCAN.

Todo:: we need a generic mode for IRQ activation

Warning: here will be done the unique connection to the interrupt handles we need a good C++ way for this we will switch to function pointer inside the Init-structure later

Implements Can.

Definition at line 65 of file CanDrv_bxCAN.cpp.

References AUTOMATIC, bxCanHdl, CAN_DET_REPORTERROR, CAN_INIT_ID, E_INIT_FAILED, E_NOT_OK, E_TRANSITION, Can::GetDrvState(), NULL_PTR, P2CONST, ptr2ComIf, and Uninit.

Here is the call graph for this function:

◆ SetControllerMode()

Std_ReturnType CanDrv_bxCAN::SetControllerMode	(	ECU_CanController	Controller,
		CanControllerStates	Transition
	)

virtual

The API to set a controller mode.

Parameters

[in]	Controller	selects the controller
[in]	Transition	selects the transition per name/id

See also: CAN_SET_CONTROLLER_MODE_ID

Todo:: maybe we add the possibility to call the function with Controller == ECU_CanController::NBROF_CanController

Implements Can.

Definition at line 145 of file CanDrv_bxCAN.cpp.

References bxCanHdl, CAN_DET_REPORTERROR, CAN_SET_CONTROLLER_MODE_ID, CS_Started, E_NOT_OK, E_OK, and E_TRANSITION.

◆ SetFilterByBitmask()

Std_ReturnType CanDrv_bxCAN::SetFilterByBitmask	(	ECU_CanController	Controller,
		ComStack_CanIdType	FilterId,
		ComStack_CanIdType	FilterMask
	)

virtual

configure a free hardware filter using bit masking

set hardware filter

Attention

This isn't the same like inside STM register access. But the function manages the correct use for STM HAL

bit 31 is IDE
bit 30 is RTR

Parameters

[in]	Controller	select the controller where the filter should be applied
[in]	FilterId	the selected filter bits
[in]	FilterMask	the filter mask to select valid filter bits

Returns: E_OK if the filter is applied, E_NOT_OK no hardware filter free

Todo:: we need a handling to select different Rx Fifo

Reimplemented from Can.

Definition at line 339 of file CanDrv_bxCAN.cpp.

References bxCanHdl, CanIdToStmRegisterFormat(), E_NOT_OK, E_OK, and FindFreeFilter().

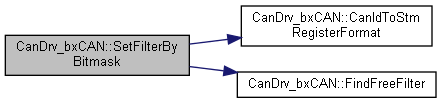

Here is the call graph for this function:

◆ SetFilterByCanId()

Std_ReturnType CanDrv_bxCAN::SetFilterByCanId	(	ECU_CanController	Controller,
		ComStack_CanIdType	FilterId
	)

virtual

configure a free hardware filter using single CAN Id filtering

set hardware filter

Parameters

[in]	Controller	select the controller where the filter should be applied
[in]	FilterId	the selected filter bits

Returns: E_OK if the filter is applied, E_NOT_OK no hardware filter free

Todo:: we need a handling to select different Rx Fifo

Reimplemented from Can.

Definition at line 383 of file CanDrv_bxCAN.cpp.

References bxCanHdl, CanIdToStmRegisterFormat(), E_NOT_OK, E_OK, and FindFreeFilter().

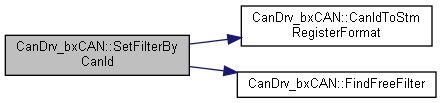

Here is the call graph for this function:

◆ TxTask()

void CanDrv_bxCAN::TxTask ( void )

virtual

task function to push the tx message from software buffer to tx mailbox

Todo:: the Tx Task need handling to transmit to other CAN controller then the bxCanMaster

Reimplemented from Can.

Definition at line 233 of file CanDrv_bxCAN.cpp.

References bxCanHdl, canTxBuffer, Can::GetDrvState(), bxCan_TxMessageType::Header, bxCan_TxMessageType::Mailbox, Ready, bxCan_TxMessageType::State, TxMessage_free, TxMessage_rdy2tx, TxMessage_transmit, TxMessage_txerr, and TxMessage_txok.

Here is the call graph for this function:

◆ Write()

Std_ReturnType CanDrv_bxCAN::Write	(	ECU_CanController	Controller,
		const ComStack_CanMessageType *	ptr2PduInfo
	)

virtual

The API to write a message to tx FIFO.

Parameters

[in]	Controller	select the controller for tx
[in]	PduInfo	the CAN message to send

Reimplemented from Can.

Definition at line 186 of file CanDrv_bxCAN.cpp.

References CAN_DET_REPORTERROR, CAN_WRITE_ID, canTxBuffer, bxCan_TxMessageType::Controller, bxCan_TxMessageType::Data, E_NOT_OK, E_OK, E_UNINIT, Can::GetDrvState(), bxCan_TxMessageType::Header, Ready, bxCan_TxMessageType::State, TRUE, TxMessage_free, TxMessage_rdy2tx, and TxMessage_write.

Here is the call graph for this function:

Member Data Documentation

◆ canTxBuffer

bxCan_TxMessageType CanDrv_bxCAN::canTxBuffer[CAN_TX_SW_BUFFER_SIZE]

private

we want a Tx software buffer

we start with a fix size. Later it would be go to the IDE

Todo:: bring the buffers to save class

Definition at line 276 of file CanDrv_bxCAN.h.

Referenced by TxTask(), and Write().

The documentation for this class was generated from the following files:

E:/Embedded_SourceCode/STM32IDE_ws/NucleoCanDev/Drivers/BSP/TM_Engineering_board/Can/CanDrv_bxCAN.h
E:/Embedded_SourceCode/STM32IDE_ws/NucleoCanDev/Drivers/BSP/TM_Engineering_board/Can/CanDrv_bxCAN.cpp
