configuration of the CAN ISO TP module More...

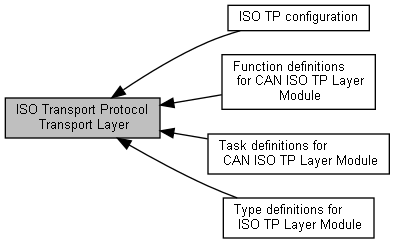

Collaboration diagram for ISO Transport Protocol Transport Layer:
Modules | |
| ISO TP configuration | |
| This container holds the configuration of the ISO TP module. | |
| Type definitions for ISO TP Layer Module | |
| there are no special public types then the configuration all types defined in the COM stack | |
| Function definitions for CAN ISO TP Layer Module | |
| Task definitions for CAN ISO TP Layer Module | |
Classes | |
| class | IsoTp |
| a class to handle the IsoTp protocol More... | |
Macros | |
| #define | ISOTP_VENDOR_ID TM_VENDOR_ID |
| my ID | |
| #define | ISOTP_MODULE_ID (0xF2) |
| module id to see where the error is come from | |
| #define | ISOTP_VERSION (0x01) |
| we have only one version at start | |
| #define | ISOTP_PATCH_VERSION (0x01) |
| no patching until now | |
Detailed Description
configuration of the CAN ISO TP module
| Abkürzung | Beschreibung | Übersetzung |
|---|---|---|
| N_AI | Network Address Information (see ISO 15765-2) | - |
| N_Ar | Time for transmission of the CAN frame (any N-PDU) on the receiver side (see ISO 15765-2) | - |
| N_As | Time for transmission of the CAN frame (any N-PDU) on the sender side (seeISO 15765-2) | - |
| N_Br | Time until transmission of the next flow control N-PDU (see ISO 15765-2) | - |
| N_Bs | Time until reception of the next flow control N-PDU (see ISO 15765-2) | - |
| N_Cr | Time until reception of the next consecutive frame N-PDU (see ISO 15765-2) | - |
| N_Cs | Time until transmission of the next consecutive frame N-PDU (see ISO 15765-2) | - |
| N_Data | Data information of the transport layer | - |
| N_PCI | Protocol Control Information of the transport layer | - |
| N_SA | Network Source Address (see ISO 15765-2) | - |
| N_TA | Network Target Address (see ISO 15765-2). It might already contain the N_TAtype(physical/function) in case of ExtendedAddressing | - |
| N_TAtype | Network Target Address type (see ISO 15765-2) | - |
| Standardabkürzungen | ||
includes only documentation :
CanIsoTP.h
