a class to handle the IsoTp protocol More...

#include <IsoTP.h>

Inheritance diagram for IsoTp:

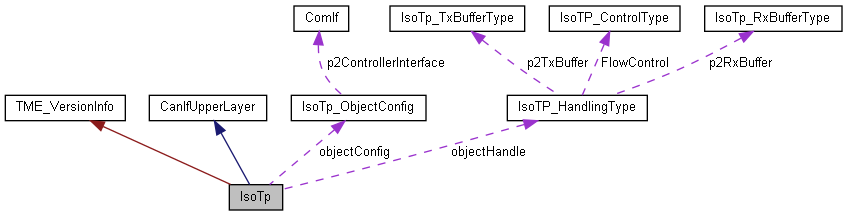

Collaboration diagram for IsoTp:

[legend]

Public Member Functions
	IsoTp (IsoTp_ObjectConfig initConfig)
	constructor with connection to a communication controller interface

Std_ReturnType	Init (const IsoTP_ConfigType *ptr2Config)
	This function initializes the object according the background configuration. More...

Std_ReturnType	Init (IsoTP_RxTxStatus SendOrReceive=IsoTP_RxTxStatus::IsoTP_SendIdle)

IsoTP_RxPduType	GetRxPduName (void)
	Get the name of the linked rx PDU. More...

IsoTP_TxPduType	GetTxPduName (void)
	Get the name of the linked rx PDU. More...

IsoTP_StatesType	GetState (void)
	to get the module state

Std_ReturnType	Transmit (const IsoTp_TxBufferType *ptr2TxBuffer)
	the transmit function More...

Std_ReturnType	Transmit (uint8_t payload[], uint16_t size)
	the transmit function More...

Std_ReturnType	RxIndication (ComStack_PduType rxPduId, const ComStack_CanMessageType *ptr2Sdu)
	overwrite the function prototype supported by the CanIfUpperLayer class More...

Std_ReturnType	Task (void)
	to handle the protocol More...

Public Member Functions inherited from CanIfUpperLayer
virtual Std_ReturnType	RxIndication (ComStack_PduType rxPduId, REF2CONST(ComStack_CanMsgHeader, AUTOMATIC) CanMsgHeader, REF2CONST(ComStack_PduInfoType, AUTOMATIC) PduInfo)
	virtual function declaration to have an indication function in all upper layer classes More...

Private Member Functions
Std_ReturnType	InitHandle (void)
	initialize the object handle

Std_ReturnType	SendFlowControl (IsoTP_FlowStatus FlowStatus)
	the flow controll message will be send

Std_ReturnType	SendSingleFrame (void)
	this function gives the data stored inside the IsoTp object to the communication controller interface

Std_ReturnType	SendFirstFrame (void)
	this function gives the data stored inside the IsoTp object to the communication controller interface

Std_ReturnType	SendConsecutiveFrame (void)
	this function gives the data stored inside the IsoTp object to the communication controller interface

Std_ReturnType	ReceiveFlowControl (const CanIsoTP_8ByteData *ptr2FlowControlFrame)
	do the work on a flow control message

Std_ReturnType	ReceiveSingleFrame (const CanIsoTP_8ByteData *ptr2SingleFrame)
	do the work on a received single frame message

Std_ReturnType	ReceiveFirstFrame (const CanIsoTP_8ByteData *ptr2FirstFrame)
	do the work on a received first frame message

Std_ReturnType	ReceiveConsecutiveFrame (const CanIsoTP_8ByteData *ptr2ConsFrame, uint8_t len)
	do the work on a received consecutive frame message

uint8_t	ms_to_st_min (uint8_t ms)

uint8_t	st_min_to_ms (uint8_t st_min)

uint32_t	GetMillisecond (void)

Private Member Functions inherited from TME_VersionInfo
	TME_VersionInfo (uint16_t Module, uint16_t Version, uint16_t Patch)
	constructor to set version Ids

	TME_VersionInfo (uint16_t Vendor, uint16_t Module, uint16_t Version, uint16_t Patch)
	constructor to set version Ids including the vendor

	TME_VersionInfo (const TME_VersionInfo &other)
	copy constructor

Std_ReturnType	GetVersionInfo (uint32_t BufferLength, const uint8_t *Ptr2Buffer)
	Copies the VersionIinfo to a 8byte buffer. More...

Private Attributes
IsoTP_HandlingType	objectHandle = { .ModuleState = IsoTP_StatesType::IsoTP_OFF }
	to handle the object lifetime

IsoTp_ObjectConfig	objectConfig
	to hold the object configuration More...

Detailed Description

a class to handle the IsoTp protocol

We start to implement the ECU/slave side of communication
we must response on functional (0x7DF/0x18DB33F1) and physical addressing (0x7E0, 0x7E1... / 0x18DAXXF1 )
every time response is on physical addressing (

Definition at line 217 of file IsoTP.h.

Member Function Documentation

◆ GetMillisecond()

uint32_t IsoTp::GetMillisecond ( void )

private

To get the actual millisecond of the system

Definition at line 788 of file IsoTP.cpp.

References objectHandle, and IsoTP_HandlingType::TaskTicks.

◆ GetRxPduName()

IsoTP_RxPduType IsoTp::GetRxPduName ( void )

Get the name of the linked rx PDU.

Todo:: we should add a virtual function to the CanIfUpperLayer class

Todo:: we should add a virtual function to the CanIfUpperLayer class

Definition at line 88 of file IsoTP.cpp.

References objectConfig, and IsoTp_ObjectConfig::rxPduName.

◆ GetTxPduName()

IsoTP_TxPduType IsoTp::GetTxPduName ( void )

Get the name of the linked rx PDU.

Todo:: we should add a virtual function to the CanIfUpperLayer class

Todo:: we should add a virtual function to the CanIfUpperLayer class

Definition at line 92 of file IsoTP.cpp.

References objectConfig, and IsoTp_ObjectConfig::txPduName.

◆ Init()

Std_ReturnType IsoTp::Init ( const IsoTP_ConfigType * ptr2Config )

This function initializes the object according the background configuration.

returns E_NOT_OK if there is a problem on the config

See also: TM_ISOTP_INIT_ID

Parameters

[in] ptr2Config pointer to hold configuration

Returns: Std_ReturnType

Version: 04.2022

Definition at line 113 of file IsoTP.cpp.

References AUTOMATIC, E_NOT_OK, E_OK, ISOTP_DET_REPORTERROR, IsoTP_ON, IsoTP_HandlingType::ModuleState, NULL_PTR, objectHandle, and VAR.

◆ ms_to_st_min()

uint8_t IsoTp::ms_to_st_min ( uint8_t ms )

private

convert millisecond to STmin value

Definition at line 760 of file IsoTP.cpp.

◆ RxIndication()

Std_ReturnType IsoTp::RxIndication	(	ComStack_PduType	rxPduId,
		const ComStack_CanMessageType *	ptr2Sdu
	)

virtual

overwrite the function prototype supported by the CanIfUpperLayer class

Parameters

[in]	rxPduId	naming the incoming message
[in]	ptr2Sdu	pointer to the data unit

Warning

this should removed from CAN Rx Interrupt !!!!

call the SendFlowControl()

this should removed from CAN Rx Interrupt !!!!

call the SendFlowControl()

this should removed from CAN Rx Interrupt !!!!

call the SendFlowControl()

Reimplemented from CanIfUpperLayer.

Definition at line 638 of file IsoTP.cpp.

References E_NOT_OK, GetState(), ISOTP_DET_REPORTERROR, ISOTP_E_UNINIT, and IsoTP_ON.

Here is the call graph for this function:

◆ st_min_to_ms()

uint8_t IsoTp::st_min_to_ms ( uint8_t st_min )

private

convert STmin value to millisecond

Definition at line 773 of file IsoTP.cpp.

◆ Task()

Std_ReturnType IsoTp::Task ( void )

to handle the protocol

See also: TM_ISOTP_SCHEDULED_FUNC_ID

Returns: Std_ReturnType

Definition at line 567 of file IsoTP.cpp.

References E_NOT_OK, IsoTP_HandlingType::FlowControl, ISOTP_DET_REPORTERROR, ISOTP_E_UNINIT, IsoTP_ON, IsoTP_HandlingType::ModuleState, objectHandle, IsoTP_ControlType::ProtocolStatus, and IsoTP_HandlingType::TaskTicks.

◆ Transmit() [1/2]

Std_ReturnType IsoTp::Transmit ( const IsoTp_TxBufferType * ptr2TxBuffer )

the transmit function

Parameters

[in] ptr2TxBuffer pointer to the data array structure including the size

Definition at line 148 of file IsoTP.cpp.

References E_NOT_OK, IsoTP_HandlingType::FlowControl, objectHandle, and IsoTP_ControlType::ProtocolStatus.

◆ Transmit() [2/2]

Std_ReturnType IsoTp::Transmit	(	uint8_t	payload[],
		uint16_t	size
	)

the transmit function

Parameters

[in]	payload	pointer to the data array
[in]	size	byte count

Member Data Documentation

◆ objectConfig

IsoTp_ObjectConfig IsoTp::objectConfig

private

Initial value:

= { .rxPduName = IsoTP_Rx_unknownPdu,
                                                        .txPduName = IsoTP_Tx_unknownPdu,
                                                        .ptr2Config = &IsoTP_DefaultConfig,
                                                        .p2ControllerInterface = NULL_PTR,
                                                      }

to hold the object configuration

Definition at line 339 of file IsoTP.h.

Referenced by GetRxPduName(), GetTxPduName(), SendFirstFrame(), and SendSingleFrame().

The documentation for this class was generated from the following files:

E:/Embedded_SourceCode/STM32IDE_ws/NucleoCanDev/Middlewares/Third_Party/TM_Engineering_DataExchange_Common/IsoTP/IsoTP.h
E:/Embedded_SourceCode/STM32IDE_ws/NucleoCanDev/Middlewares/Third_Party/TM_Engineering_DataExchange_Common/IsoTP/IsoTP.cpp
