CanFT2p0Stream Class Reference
Inheritance diagram for CanFT2p0Stream:

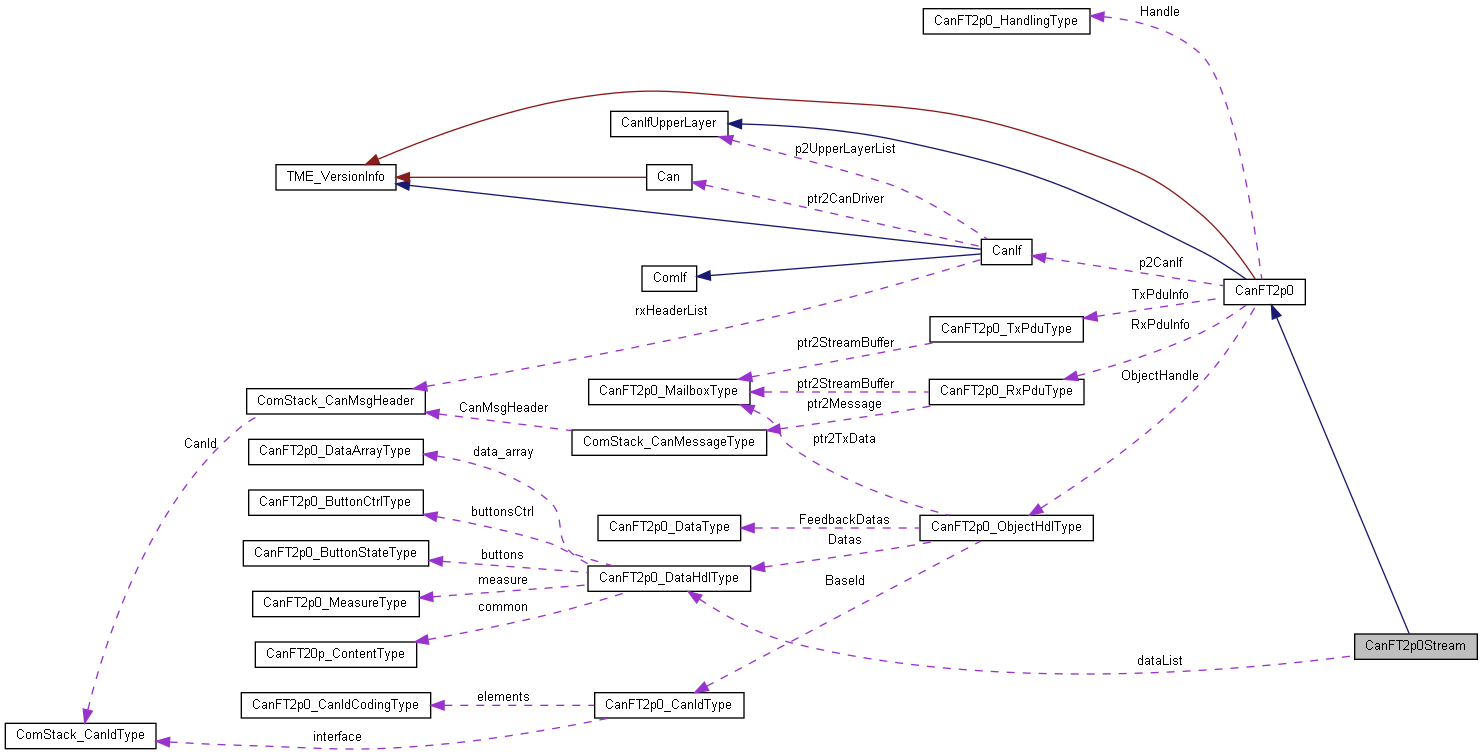

Collaboration diagram for CanFT2p0Stream:
Public Member Functions | |
| CanFT2p0Stream (const CanIf *p2CanInterface) | |
| CanFT2p0Stream (const CanIf *p2CanInterface, CanIf_RxPduIdType rxPduName) | |
| Std_ReturnType | RxIndication (ComStack_PduType rxPduId, const ComStack_CanMessageType *ptr2Sdu) |
| overwrite the function prototype supported by the CanIfUpperLayer class More... | |
| CanFT2p_MeasureValueType | GetMeasureValue (CanFT2p0_MeasureID MeasureId) |
| Std_ReturnType | GetMeasureValue (CanFT2p0_MeasureID MeasureId, REF2VAR(CanFT2p_MeasureValueType, AUTOMATIC) MeasureValue) |
 Public Member Functions inherited from CanFT2p0 | |
| CanFT2p0 (const CanIf *p2CanInterface) | |
| constructor to connect to communication controller interface | |
| CanFT2p0 (const CanIf *p2CanInterface, CanIf_RxPduIdType rxPduName) | |
| constructor to connect to communication controller interface and naming the PDUs | |
| CanFT2p0_StatesType | GetState (void) |
| to get the module state | |
| Std_ReturnType | Init (const CanFT2p0_CfgType *ptr2Config=nullptr) |
| CanIf * | GetHwInterface (void) |
| get the handle to the connected communication controller interface | |
| CanIf_RxPduIdType | GetRxPduName (void) |
| Get the name of the linked rx PDU. More... | |
| Std_ReturnType | TxIndication (CanIf_TxPduIdType txPduId, const CanIf_PduInfoType *p2TxPdu) |
| overwrite the function prototype supported by the CanIfUpperLayer class More... | |
| Public Member Functions inherited from CanIfUpperLayer | |
| virtual Std_ReturnType | RxIndication (ComStack_PduType rxPduId, REF2CONST(ComStack_CanMsgHeader, AUTOMATIC) CanMsgHeader, REF2CONST(ComStack_PduInfoType, AUTOMATIC) PduInfo) |
| virtual function declaration to have an indication function in all upper layer classes More... | |
Private Types | |
| enum | CanMessageState { WaitForFirstMsg } |
Private Attributes | |
| uint16_t | size = 0 |
| uint16_t | segmCount = 0 |
| uint16_t | dataCount = 0 |
| uint16_t | readCount = 0 |
| CanFT2p0_DataHdlType | dataList [24] |
Detailed Description
Definition at line 22 of file CanFT2p0Stream.h.
Member Function Documentation
◆ RxIndication()
|
virtual |
overwrite the function prototype supported by the CanIfUpperLayer class
- Parameters
-
[in] rxPduId naming the incoming message [in] ptr2Sdu pointer to the data unit
- Attention
- this function will be called in interrupt context
- we need a secure to avoid buffer overflow
Reimplemented from CanFT2p0.
Definition at line 48 of file CanFT2p0Stream.cpp.
References CANFT2P0_DET_REPORTERROR, CANFT2P0_RXINDICATION_ID, CANFT_ON, E_NOT_OK, E_OK, CanFT2p0::GetState(), and NULL_PTR.
Here is the call graph for this function:
The documentation for this class was generated from the following files:
- E:/Embedded_SourceCode/STM32IDE_ws/NucleoCanDev/Middlewares/Third_Party/TM_Engineering_DataExchange_Fueltech/FTCAN2p0/CanFT2p0Stream.h
- E:/Embedded_SourceCode/STM32IDE_ws/NucleoCanDev/Middlewares/Third_Party/TM_Engineering_DataExchange_Fueltech/FTCAN2p0/CanFT2p0Stream.cpp
