a class to handle the Fueltech CAN FT2.0 protocol More...

#include <CanFT2p0.h>

Inheritance diagram for CanFT2p0:

[legend]

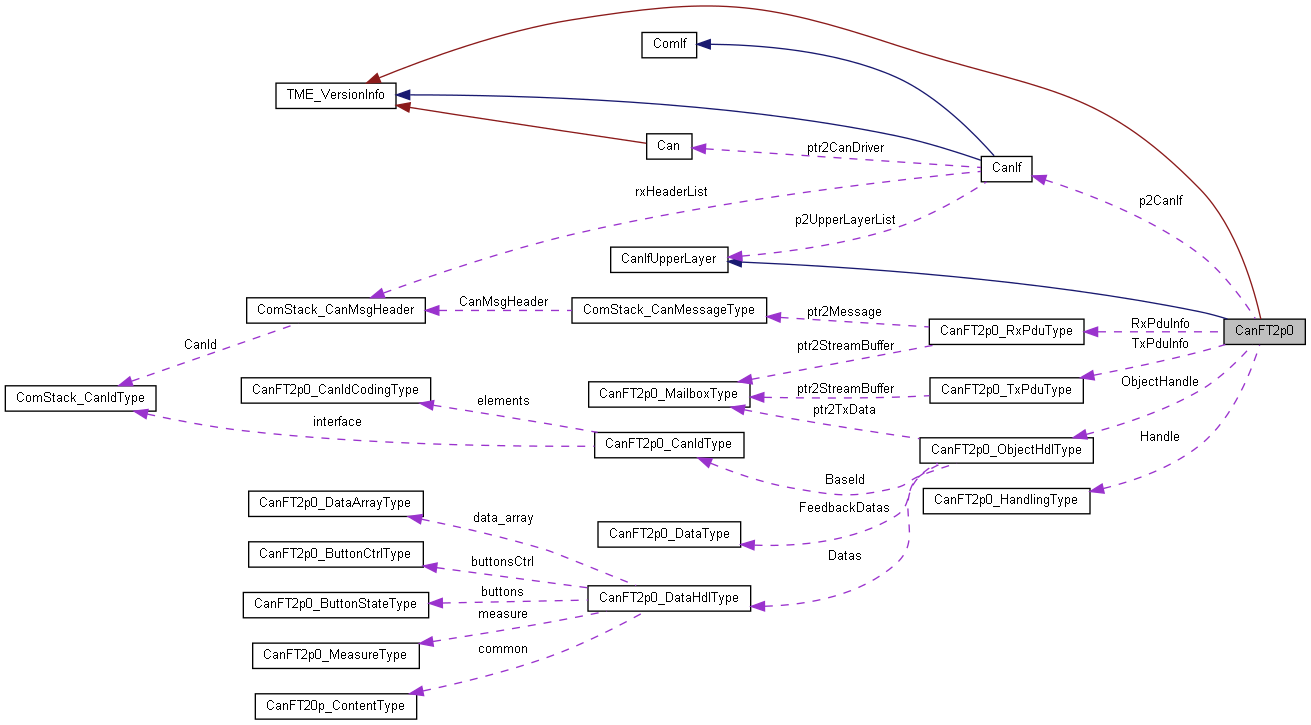

Collaboration diagram for CanFT2p0:

[legend]

Public Member Functions
	CanFT2p0 (const CanIf *p2CanInterface)
	constructor to connect to communication controller interface

	CanFT2p0 (const CanIf *p2CanInterface, CanIf_RxPduIdType rxPduName)
	constructor to connect to communication controller interface and naming the PDUs

CanFT2p0_StatesType	GetState (void)
	to get the module state

Std_ReturnType	Init (const CanFT2p0_CfgType *ptr2Config=nullptr)

CanIf *	GetHwInterface (void)
	get the handle to the connected communication controller interface

CanIf_RxPduIdType	GetRxPduName (void)
	Get the name of the linked rx PDU. More...

Std_ReturnType	RxIndication (ComStack_PduType rxPduId, const ComStack_CanMessageType *ptr2Sdu)
	overwrite the function prototype supported by the CanIfUpperLayer class More...

Std_ReturnType	TxIndication (CanIf_TxPduIdType txPduId, const CanIf_PduInfoType *p2TxPdu)
	overwrite the function prototype supported by the CanIfUpperLayer class More...

Public Member Functions inherited from CanIfUpperLayer
virtual Std_ReturnType	RxIndication (ComStack_PduType rxPduId, REF2CONST(ComStack_CanMsgHeader, AUTOMATIC) CanMsgHeader, REF2CONST(ComStack_PduInfoType, AUTOMATIC) PduInfo)
	virtual function declaration to have an indication function in all upper layer classes More...

Private Member Functions
Std_ReturnType	DataCopy (uint8_t DataLength, const uint8_t DestPtr, const uint8_t SourcePtr)
	byte wise copy More...

Std_ReturnType	DataReverseCopy (uint8_t DataLength, const uint8_t DestPtr, const uint8_t SourcePtr)
	byte wise copy in reversed order More...

Private Member Functions inherited from TME_VersionInfo
	TME_VersionInfo (uint16_t Module, uint16_t Version, uint16_t Patch)
	constructor to set version Ids

	TME_VersionInfo (uint16_t Vendor, uint16_t Module, uint16_t Version, uint16_t Patch)
	constructor to set version Ids including the vendor

	TME_VersionInfo (const TME_VersionInfo &other)
	copy constructor

Std_ReturnType	GetVersionInfo (uint32_t BufferLength, const uint8_t *Ptr2Buffer)
	Copies the VersionIinfo to a 8byte buffer. More...

Private Attributes
CanFT2p0_HandlingType	Handle

CanFT2p0_ObjectHdlType	ObjectHandle [CANFT_OBJECT_COUNT]

CanFT2p0_RxPduType	RxPduInfo [CANFT_RXPDU_COUNT]

CanFT2p0_TxPduType	TxPduInfo [CANFT_TXPDU_COUNT]

const CanIf *	p2CanIf = nullptr

CanIf_RxPduIdType	rxPduName = CanIf_Rx_unknownPdu

Detailed Description

a class to handle the Fueltech CAN FT2.0 protocol

Definition at line 392 of file CanFT2p0.h.

Member Function Documentation

◆ DataCopy()

Std_ReturnType CanFT2p0::DataCopy	(	uint8_t	DataLength,
		const uint8_t *	DestPtr,
		const uint8_t *	SourcePtr
	)

private

byte wise copy

the size of the destination array must be the same as it be on the source array

Definition at line 147 of file CanFT2p0.cpp.

References E_NOT_OK, E_OK, and NULL_PTR.

◆ DataReverseCopy()

Std_ReturnType CanFT2p0::DataReverseCopy	(	uint8_t	DataLength,
		const uint8_t *	DestPtr,
		const uint8_t *	SourcePtr
	)

private

byte wise copy in reversed order

the size of the destination array must be the same as it be on the source array
The first byte of the source will be the last byte of the destination

Definition at line 168 of file CanFT2p0.cpp.

References E_NOT_OK, E_OK, and NULL_PTR.

◆ GetRxPduName()

CanIf_RxPduIdType CanFT2p0::GetRxPduName ( void )

inline

Get the name of the linked rx PDU.

Todo:: we should add a virtual function to the CanIfUpperLayer class

Definition at line 426 of file CanFT2p0.h.

◆ Init()

Std_ReturnType CanFT2p0::Init ( const CanFT2p0_CfgType * ptr2Config = nullptr )

This function initializes the object according the background configuration.

See also: CANFT2P0_INIT_ID

Parameters

[in] ptr2Config Name the Type we want to be

Returns: Std_ReturnType success or failed init

Version: 02.2021

Definition at line 42 of file CanFT2p0.cpp.

References AUTOMATIC, CANFT2P0_DET_REPORTERROR, CANFT2P0_INIT_ID, CANFT_OFF, CANFT_ON, E_NOT_OK, E_OK, CanFT2p0_HandlingType::ModuleState, NULL_PTR, CanFT2p0_HandlingType::ptr2Config, and VAR.

◆ RxIndication()

Std_ReturnType CanFT2p0::RxIndication	(	ComStack_PduType	rxPduId,
		const ComStack_CanMessageType *	ptr2Sdu
	)

virtual

overwrite the function prototype supported by the CanIfUpperLayer class

Parameters

[in]	rxPduId	naming the incoming message
[in]	ptr2Sdu	pointer to the data unit

Reimplemented from CanIfUpperLayer.

Reimplemented in CanFT2p0Stream.

Definition at line 79 of file CanFT2p0.cpp.

References CANFT_ON, E_NOT_OK, GetState(), NULL_PTR, and READ_FLAG.

Here is the call graph for this function:

◆ TxIndication()

Std_ReturnType CanFT2p0::TxIndication	(	CanIf_TxPduIdType	txPduId,
		const CanIf_PduInfoType *	p2TxPdu
	)

overwrite the function prototype supported by the CanIfUpperLayer class

Definition at line 126 of file CanFT2p0.cpp.

References CANFT_ON, E_NOT_OK, CanFT2p0_HandlingType::ModuleState, and CanIf::Transmit().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

E:/Embedded_SourceCode/STM32IDE_ws/NucleoCanDev/Middlewares/Third_Party/TM_Engineering_DataExchange_Fueltech/FTCAN2p0/CanFT2p0.h
E:/Embedded_SourceCode/STM32IDE_ws/NucleoCanDev/Middlewares/Third_Party/TM_Engineering_DataExchange_Fueltech/FTCAN2p0/CanFT2p0.cpp
